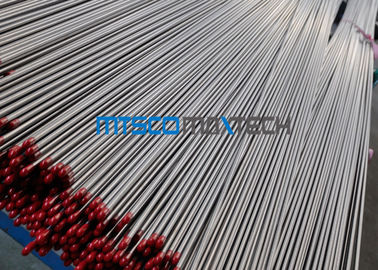

S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport

Minimum Order Quantity :	negotiable	মূল্য :	4300-9800USD/TON

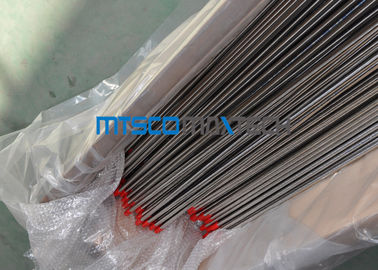

Packaging Details :	Iron Case / Plywood Case	Delivery Time :	30 Days
Payment Terms :	T / T ; L / C	Supply Ability :	300 Tons / Month

Place of Origin:	CHINA	পরিচিতিমুলক নাম:	MTSCO
সাক্ষ্যদান:	ISO 9001 & PED & AD2000	Model Number:	MTSCOSSST42

বিস্তারিত তথ্য
Material:	300 Series	Standard:	ASTM A269
Condition:	Soft	Heat Treatment:	Annealing
Test:	Eddy Current & Hydraulic Test	Surface:	Pickling
বিশেষভাবে তুলে ধরা:	ss Seamless Tubing , ss seamless tube

পণ্যের বর্ণনা

1 Inch S31600 / S31603 High Pressure Stainless Steel Seamless Tubing With Bright Annealed Surface

Item	Description
Basic Information	Material Grade	TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc
	Outer Diameter	3.18-101.6mm
	Wall Thickness	0.5-20mm
	Length	Normally fixed length 6m , can as per customer’s requirement
	Standard	ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .
	Process Method	Cold Drawn or Cold Rolled
Industry & Advantage	Application	a) For fluid & gas transport
		b) Structure & machining
		c) Petrochemical
		d) Environmental protection
		e) Electricity
		f) Instrument industry etc
	Advantages	a) Superior surface finish
		b) Better mechanical property
		c) More precise dimension
		d) Perfect inspection method and inspection equipment

Specifications :

DN	NPS(Inch)	D(mm)	SCH5S	SCH10S	SCH40S	STD	SCH40	SCH80	XS	SCH80S	SCH160	XXS
6	1/8	10.30	-	1.24	1.73	1.73	1.73	2.41	2.41	2.41	-	-
8	1/4	13.70	-	1.65	2.24	2.24	2.24	3.02	3.02	3.02	-	-
10	3/8	17.10	-	1.65	2.31	2.31	2.31	3.20	3.20	3.20	-	-
15	1/2	21.30	1.65	2.11	2.77	2.77	2.77	3.73	3.73	3.73	4.78	7.47
20	3/4	26.70	1.65	2.11	2.87	2.87	2.87	3.91	3.91	3.91	5.56	7.82
25	1	33.40	1.65	2.77	3.38	3.38	3.38	4.55	4.55	4.55	6.35	9.09
32	1 1/4	42.20	1.65	2.77	3.56	3.56	3.56	4.85	4.85	4.85	6.35	9.70
40	1 1/2	48.30	1.65	2.77	3.68	3.68	3.68	5.08	5.08	5.08	7.14	10.15
50	2	60.30	1.65	2.77	3.91	3.91	3.91	5.54	5.54	5.54	8.74	11.07
65	2 1/2	73.00	2.11	3.05	5.16	5.16	5.16	7.01	7.01	7.01	9.53	14.02
80	3	88.90	2.11	3.05	5.49	5.49	5.49	7.62	7.62	7.62	11.13	15.24
90	3 1/2	101.60	2.11	3.05	5.74	5.74	5.74	8.08	8.08	8.08	-	-
100	4	114.30	2.11	3.05	6.02	6.02	6.02	8.56	8.56	8.56	13.49	17.12
125	5	141.30	2.77	3.40	6.55	6.55	6.55	9.53	9.53	9.53	15.88	19.05
150	6	168.30	2.77	3.40	7.11	7.11	7.11	10.97	10.97	10.97	18.26	21.95
200	8	219.10	2.77	3.76	8.18	8.18	8.18	12.70	12.70	12.70	23.01	22.23
250	10	273.10	3.40	4.19	9.27	9.27	9.27	15.09	12.70	12.70	28.58	25.40

ASTM A269 STANDARD :

Elements	304L(wt%) S30403	316L (wt%) S31603	316 (wt%) S31600
(C) Carbon, max	0.035	0.035	0.08
(Mn) Manganese, max	2	2	2
(P) Phosphorus, max	0.045	0.045	0.045
(S) Sulfur, max	0.03	0.03	0.03
(Si) Silicon, max	1	1	1
(Ni) Nickel	8.0 - 12.0	10.0 - 14.0	10.0 - 14.0
(Cr) Chromium	18.0 - 20.0	16.0 - 18.0	16.0 - 18.0
(Mo) Molybdenum	N/A	2.0 - 3.0	2.0 - 3.0
(Fe) Iron	Bal.	Bal.	Bal.
(Cu) Copper	N/A	N/A	N/A
(N) Nitrogen	N/A	N/A	N/A
