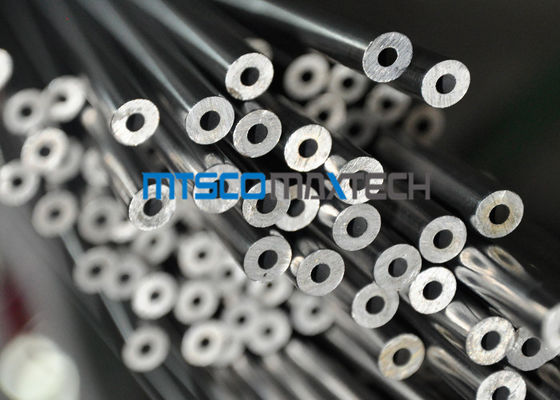

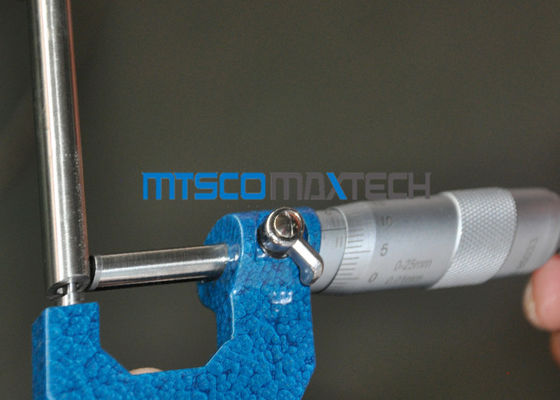

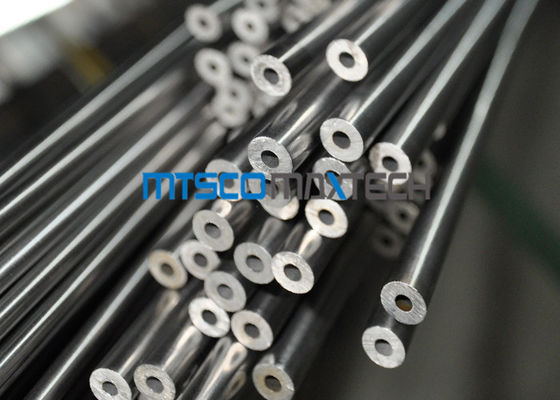

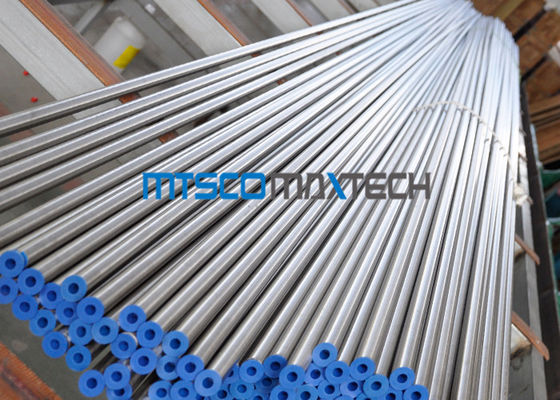

TP321 / 321H Hydraulic Seamless Stainless Steel Tube 1 / 4 Inch For Food Industry

Minimum Order Quantity : negotiable মূল্য : 4300-9800USD/TON
Packaging Details : ron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA পরিচিতিমুলক নাম : MTSCO
সাক্ষ্যদান : ISO 9001 & PED & AD2000 Model Number : MTSCOSSST26

বিস্তারিত তথ্য

Material: S30400 / S30403 Surface: Bright Annealed
Length: 6000 MM Tests: NDT Eddy Current Or Hydraulic Test
Delivery Conditions: Soft / Hard

পণ্যের বর্ণনা

1 / 4Inch TP321 / 321H Stainless Steel Seamless Hydraulic Tube For Food Industry





Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09



Product Description



Outer Diameter 3.18-101.6mm
Wall Thickness 0.5-20mm
NPS 1/8"-24"
Schedule 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S
Material Grade 304/304L/316/316L/321/309S/310S, etc
Standard ASTM A269, ASTM A312, etc
Application used in Fluid and Gas Transport, Structure and Machining,etc
Certificates ISO9001:2008, PED, BV
Process Method Cold Drawn/ Cold Rolled
Surface Finish Annealed/ Polished
Package Woven bag for each piece, then packed in seaworthy wooden cases
Delivery Time 20-60 Days after receiving the deposit (Normally according to the order quantity)
Price Item FOB, CIF or as negotiation
Payment T/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Main Market

Europe, Middle East, Southeast Asia, South America, etc







Application :



1 . For fluid & gas transport

2 . Petrochemical

3 . Environmental protection

4 . Structure & Machining

5 . Electricity

6 . Instrument industry etc


TP321 / 321H Hydraulic Seamless Stainless Steel Tube 1 / 4 Inch For Food Industry
