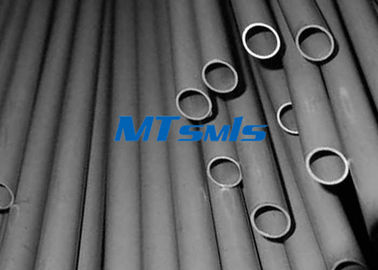

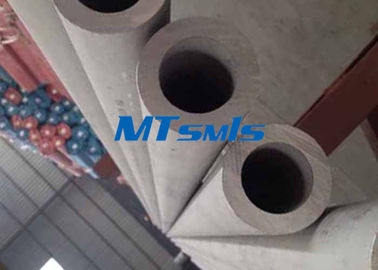

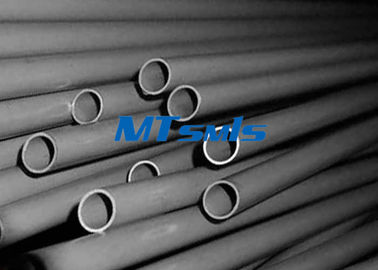

DN150 Stainless Steel Seamless Pipe S34700 / S34709 Industrial Welding Round Tube

Minimum Order Quantity : negotiable মূল্য : 2900-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA পরিচিতিমুলক নাম : MTSCO
সাক্ষ্যদান : ISO 9001 & PED & AD2000 Model Number : MTSCOSSSP52

বিস্তারিত তথ্য

Material: 300 Series, 316Ti, 317L, 347,347H Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test End Cut: Plain End ( PE ) / Bevel End ( BE )
Type: Seamless Inspection: 100%

পণ্যের বর্ণনা

DN150 Stainless Steel Seamless Pipe, S34700 / S34709 Industrial Pipe





Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4 114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5 141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6 168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8 219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23.01 22.23
250 10 273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28.58 25.40



Specifications:



1. Standards:ASTM / ASME, GB, DIN, JIS, T14975, etc.
2. Out Diameter: 10.3mm-1219mm
    Wall Thickness:1.24mm-59.54mm



We are professional manufacturer of stainless steel pipe, seamless stainless steel pipe.

01) Commodity name: seamless stainless steel pipe
02) Process method: cold rolled/cold drawn
03) Surface finish: annealed/pickling(AP), Bright Annealed(BA)
04) Material: TP304, TP304L,TP304/304L, TP310/S, TP316,TP316L, TP316/316L, TP317L,TP321,TP347/H S31803, 904L
05) Standards: ASTM (ASME) SA/A213/M ASTM(ASME)269 ASTM(ASME)312 JIS G3459 JIS G3463 DIN 17456 DIN 17458

       Schedule: 5/5S, 10/10S, 20/20S, 40/40S, 80/80S,120/120S, 160/160S,acc. to ANSI B36.19/36.10
06) Length: Max.17 meters (specific or random)
07) Delivery conditions: annealed, pickled & polished
08) Applications:

       a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear)
       b) Fluid, gas and oil transport
       c) Pressure and heat transmission
       d) Construction and ornament
       e) Boiler heat exchangers

09) Packing: plastic bags for each piece then packed in seaworthy wooden cases
10) Min order quantity: 1 metric tons or upon negotiation
11) Delivery date: Min. 30 days and negotiation



Chemical Composition



  C(max) Si(max) P(max) S(max) Cr Ni Mo Ti
TP317L/1.4449 0.080 1.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



DN150 Stainless Steel Seamless Pipe S34700 / S34709 Industrial Welding Round Tube





MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
