Bright AISI 316L Stainless Sanitary Tubing Size 25.4*0.89mm For Oil And Gas

Minimum Order Quantity : negotiable মূল্য : 6000-12000USD/TON
Packaging Details : Iron Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA পরিচিতিমুলক নাম : MTSCO
সাক্ষ্যদান : ISO 9001 & PED & AD2000 Model Number : MTSCOST22

বিস্তারিত তথ্য

Material: Stainless Steel 300 Series Technology: Cold drawn
Surface: Polished 400 # , 320 # Etc Delivery Condition: Soft / Hard
Inspection: 100% Type: Seamless

পণ্যের বর্ণনা

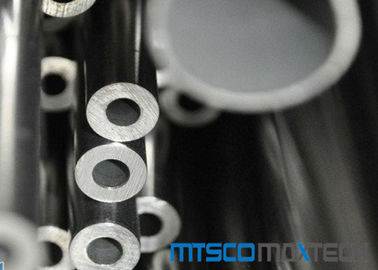

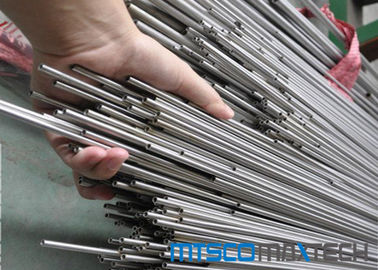

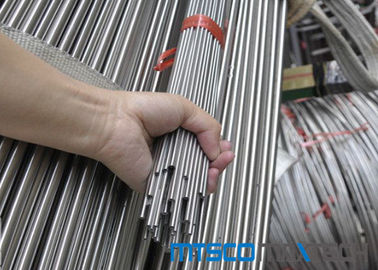

AISI 316L Stainless Steel Sanitary Tubing Size 25.4*0.89mm For Oil And Gas





Grade



TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard



ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc
Size OD:3.18-101.6mm
WT:0.5-20mm
Length:Max.12M
Advantage Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment
Application

Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature

resistant,low temperature resistant,corrosion resistant.The size can be made according

to the customers requirements.High pressure boiler pipe applies to container,petrochemical

and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.

Package Plastic in both ends, then packed in iron case





Application :



1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler and heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )



Specification :











Size

OD : 4.76 - 25.4mm

WT : 0.71 - 2.11mm

Length : >1000Meters

4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm

6 * 1mm / 6 * 1.5mm

6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm

7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm

9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm

10 * 1mm / 10 * 1.5mm

12 * 1mm / 12 * 1.5mm / 12 * 2mm

12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm

14 * 1mm / 14 * 1.5mm / 14 * 2mm

15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm

16 * 1mm / 16 * 1.5mm / 16 * 2mm

19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm









Chemical Composition : ASTM A213 / A213M Standard



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A
